RAYCHEM

Water Leak Control Panel

TT-TS12

Long awaited upgrade

• Monitors up to 250 SIMs

• Displays status of all channels and leak locations graphically

• 12” SVGA color display with Touch Screen interaction

• Extensive data logging and host interface options including Modbus-RTU; Modbus TCP; alert email.

• Sold as standard self-contained wall mounted panels (up to 4 SIMs); custom panels possible from nVent UL recognized panel shop.

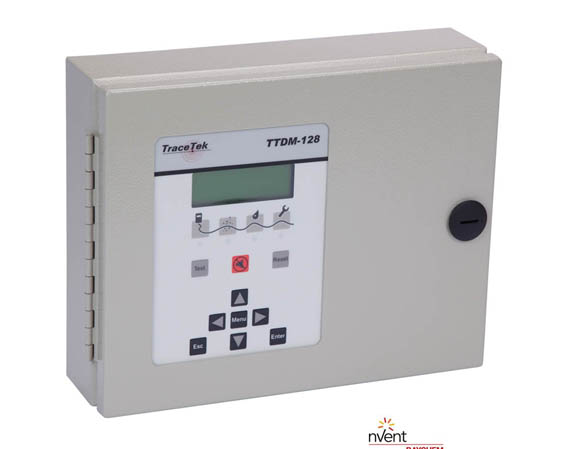

TTDM-128

20 years old but still the workhorse

• Operates on 120/230 Vac or 24 Vac/Vdc (2 part numbers)

• The 128 means it can monitor 127 SIMs – Plus one channel (00) reserved for set-up. Has one built-in SIM card.

• TTDM-128 acts as the network master for the SIM network and every SIM will wait passively unit the TTDM calls out its number

• The TTDM uses the data that it collects from the SIMs to display channel status and leak locations in the LCD display window; operate summary relays, status LEDs, audible alarm

• All events are logged into an event history that has the capacity to store 2048 events.

• The TTDM also organizes all of the data that it collects into a data base for a host system to access via a second communications port
